IFlexx® gantry and ceiling tile service modules

flexible modular laboratory services

iflexx modular overhead service MODULES

Introducing the iFlexx iGantry and iTile service modules, providing flexible service delivery modules for your new lab, when seamlessly combined with our iFlexx modular benches, delivers an unparalleled flexible modular laboratory solution tailored to satisfy even the most exacting client demands. The iGantry service unit, a versatile overhead service carrier, effortlessly accommodates power, data, and gas services, while the iTile service unit, a ceiling-mounted carrier, ensures greater flexibility and ease of installation.

By harmoniously integrating the iFlexx modular lab benching system with these service units, we are able to offer a vast array of configurations to suit a diverse range of laboratory applications, spanning from fundamental research to sophisticated testing and analysis. Consequently, our clients are presented with a fully integrated and bespoke lab solution that not only fulfils their specific needs and requirements, but also delivers exceptional flexibility, adaptability, and user-friendliness. Experience the future of laboratory solutions today with our iFlexx system, and unlock the full potential of your research environment.

iGANTRY SERVICE GANTRY MODULE

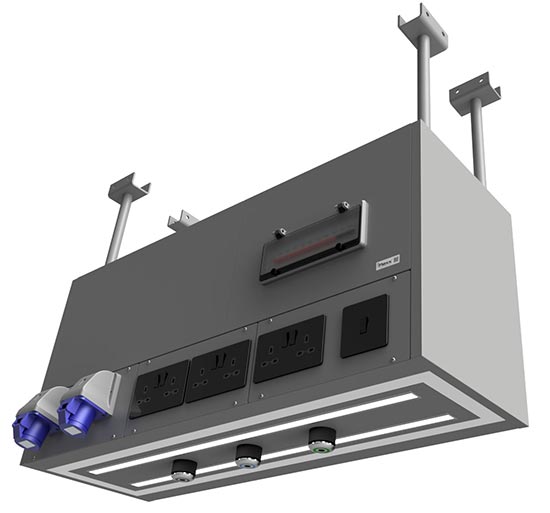

igantry gantry overhead service module for modular lab

OPTIONAL COMMANDO MODULES 16 OR 32 AMP

CIRCUIT BREAKER MODULE (RCBOs)

Telescopic Hanging Brackets

Light Switch

Optional Quick Release or Fixed Gas Taps

LED TASK LIGHTING

2 GANG MODULES FOR POWER AND DATA

CODE DIM L x D x H
IF1000G 1000 x 300 x 600

SPECIFICATION

1 X RCD PROTECTION DEVICE (1st Module)

1 X LIGHT SWITCH (REQUIRES ONE OF THE 1G FACEPLATE OPTIONS

LED TASK LIGHTING x 2

3 X FACE PLATE OPTIONS PER SIDE

CHOOSE FROM ANY OF THE COMBINATIONS BELOW
 TO MAKE UP YOUR MODULE

Face Plate Description
Blanking Plate
1 x 2G and 1 x 1G Face Plate
2 x 1G Face Plate
1 x 2G Face Plate
2 x 2G Faceplate
2 x 16 or 32 AMP COMMANDO SKT

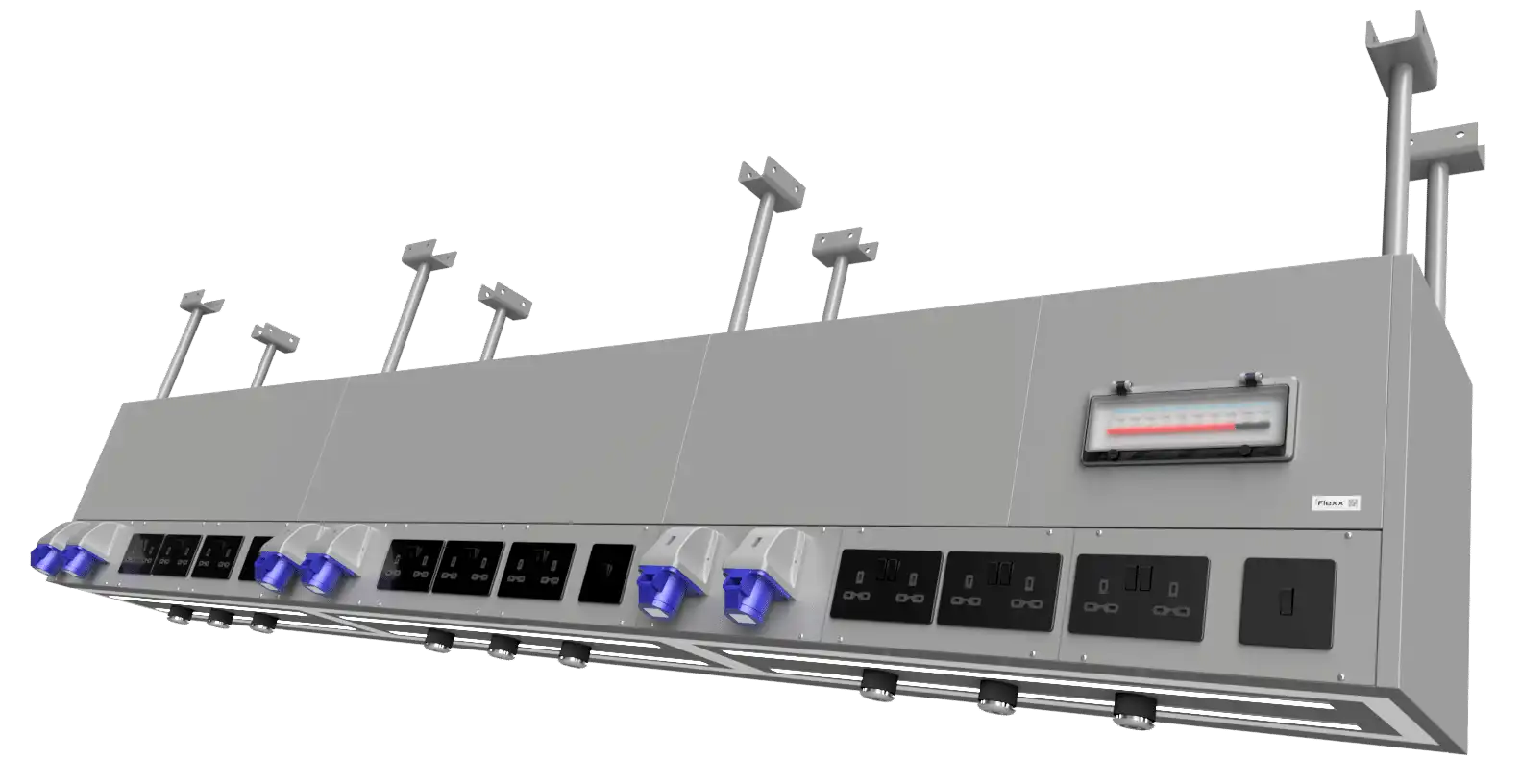

The iGANTRY system is a modular system, to create larger runs you just connect more modules in line to the desired length.

iTILE SERVICE TILE MODULE

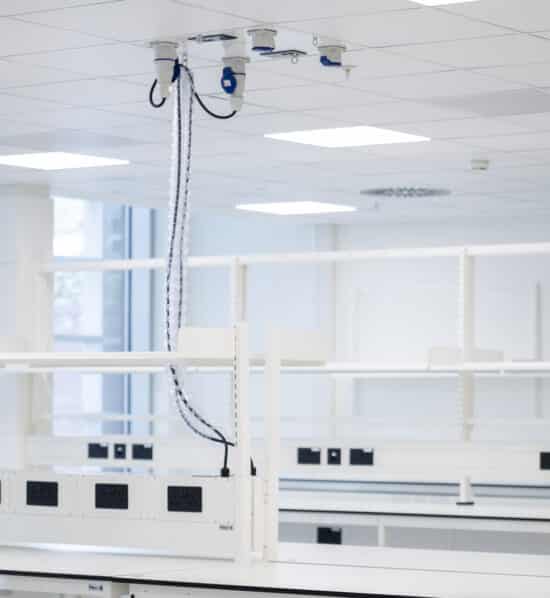

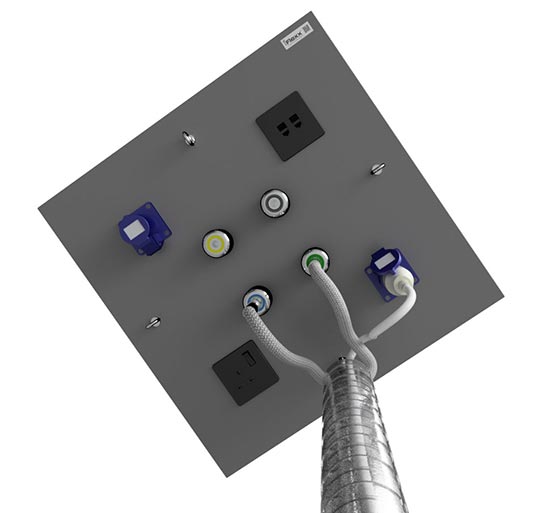

itile service tile module for modular lab

 2 X OPTIONAL COMMANDO SOCKETS 16 OR 32 AMP

2 x 1 Gang Power or Data Modules

4 x Optional Quick Release Gas

Bench Service Umbilical hook up connector

CODE DIM L x D x H
IF600T 600 x 600

spECIFICATION

SERVICE TILE CEILING MODULE

FITS IN A STANDARD 600 CEILING TILE GRID

OPTIONAL 2 x 1G KNOCKOUT MODULES (POWER / DATA)

OPTIONAL 2 x COMMANDO SOCKET (16 OR 32AMP)

OPTIONAL QUICK RELEASE GAS SOCKETS

BESPOKE CONFIGURATIONS AVAILABLE (subject to quantity)

IFlexx Modular Benching

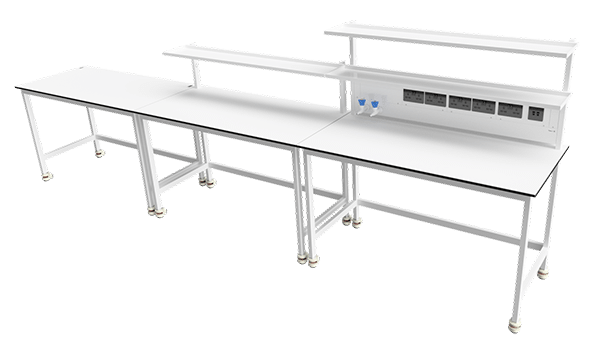

iflexx modular lab bench system

The iFlexx modular laboratory benching system is a versatile solution for lab workspaces. The system features a robust lab bench and worktop, which can be outfitted with feet, castors, or a combination of both for added mobility. Additional Modules can be added to the benches to create your custom modular lab benching solution.

Get In Touch Today To Find Out how the Iflexx MODULAR LAB system can integrate into your new lab

And start your journey into a new flexible way of working in your laboratory
