IFlexx® Modular Laboratory Benches
flexible modular laboratory benching solution

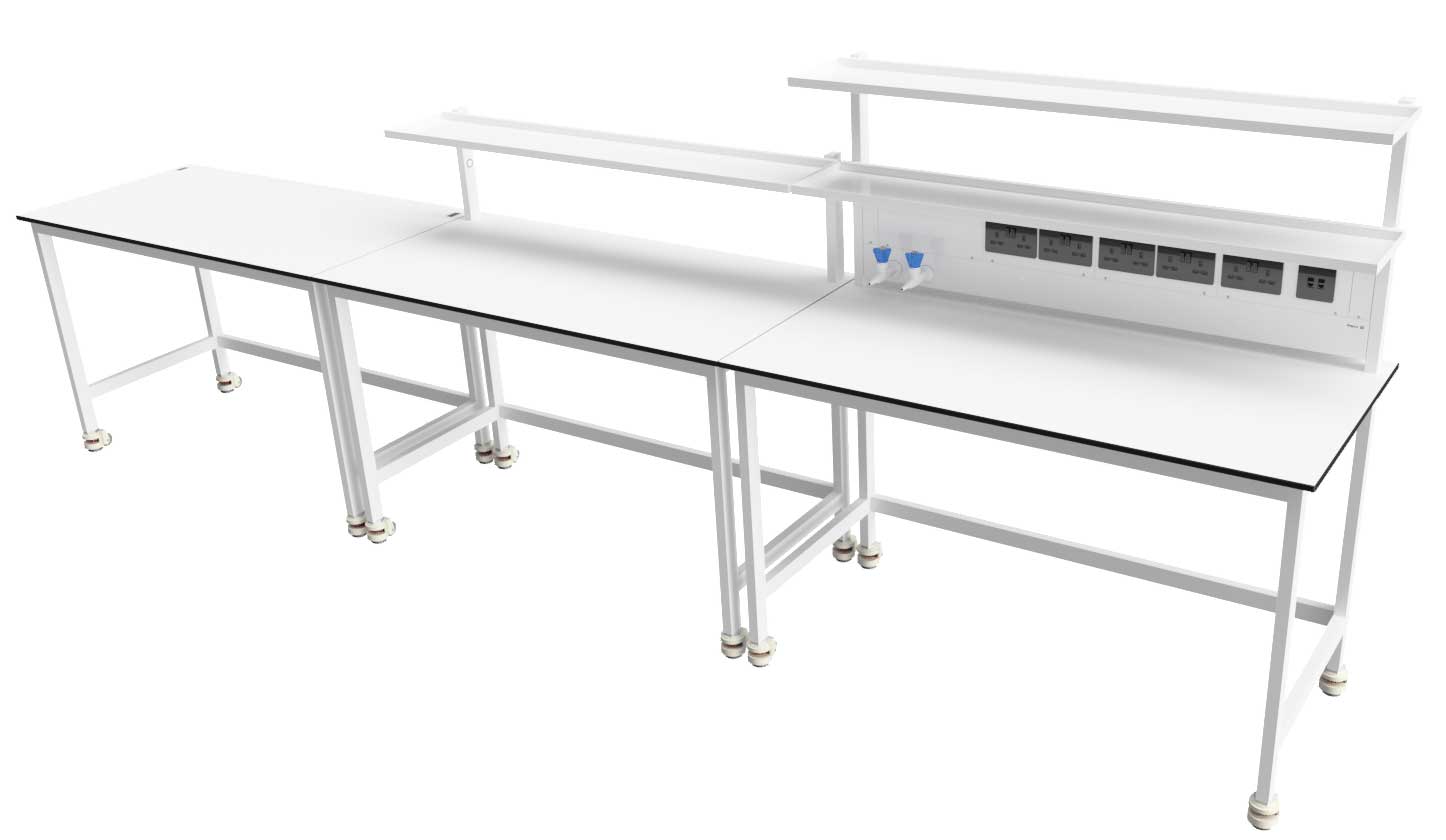

iflexx modular BENCH System
Introducing the iFlexx modular laboratory benching system, a highly adaptable solution designed to optimise lab workspaces. To begin with, this innovative system boasts a heavy duty lab bench and worktop, which can be equipped with feet, castors, or a heavy duty levelling castor to enhance mobility. Furthermore, clients are presented with a variety of customisable modules, ensuring that their unique requirements are met with ease.
The iFlexx Tower Series is a self-contained bench system, integrating services in a vertical fashion. As such, it serves as a great option when worktop space is at a premium for larger equipment. Experience the seamless fusion of flexibility, functionality, and efficiency with the iFlexx modular laboratory benching system, tailored to elevate your laboratory experience to new heights.
iflexX 1200 series
| CODE | DIM W x D x H |
|---|---|
| IF12750 | 1200 x 750 x 930 |
| IF12850 | 1200 x 850 x 930 |
| IF12950 | 1200 x 950 x 930 |
* images show optional modules fitted to benches and are not included as standard.
iflexX 1500 series
| CODE | DIM W x D x H |
|---|---|
| IF15750 | 1500 x 750 x 930 |
| IF15850 | 1500 x 850 x 930 |
| IF15950 | 1500 x 950 x 930 |
iflexX 1800 series
| CODE | DIM W x D x H |
|---|---|
| IF18750 | 1800 x 750 x 930 |
| IF18850 | 8200 x 850 x 930 |
| IF82950 | 1800 x 950 x 930 |

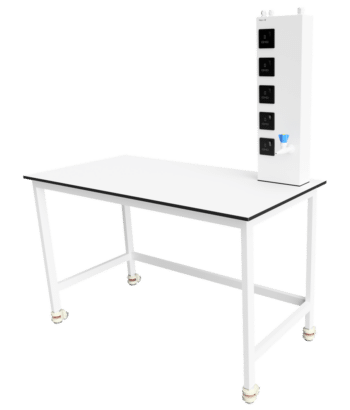

iflexX TOWER series
| CODE | DIM W x D x H |
|---|---|
| IF12750T | 1200 x 750 x 930 |
| IF12850T | 1200 x 850 x 930 |
| IF12950T | 1200 x 950 x 930 |
| IF15750T | 1500 x 750 x 930 |
| IF15850T | 1500 x 850 x 930 |
| IF15950T | 1500 x 950 x 930 |
| IF18750T | 1800 x 750 x 930 |
| IF18850T | 1800 x 850 x 930 |
| IF18950T | 1800 x 950 x 930 |
iflexx 1200 | 1500 | 1800 SERIES BENCH OPTIONAL MODULES

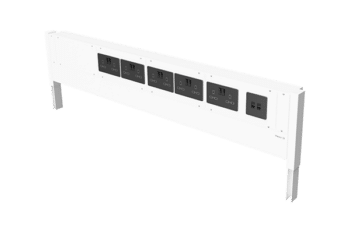

SERVICE MODULE
TYPICAL CONFIGURATIONS FOR 1200 MODULE
| CODE | CONFIGURATION |
|---|---|
| SM1 | 4 x DBL SKT - 2 x CAT6A |
| SM2 | 3 x DBL SKT - 2 x CAT6A - GAS |
| SM3 | 3 x DBL SKT - 2 x CAT6A - 1 x LIGHT SW |
TYPICAL CONFIGURATIONS FOR 1500 MODULE
| CODE | CONFIGURATION |
|---|---|
| SM4 | 6 x DBL SKT - 2 x CAT6A - 1 x LIGHT SWITCH |
| SM5 | 4 x DBL SKT - 2 x CAT6A - 1 x LIGHT SWITCH - GAS |
| SM6 | 6 x DBL SKT - 2 x GAS |
TYPCIAL CONFIGURATIONS FOR 1800 MODULE
| CODE | CONFIGURATION |
|---|---|
| SM7 | 8 x DBL SKT - 2 x CAT6A - 1 x LIGHT SW |
| SM8 | 8 x DBL SKT - 4 x CAT6A |
| SM9 | 6 x DBL SKT - 4 x CAT6A - 2 x GAS |
These are the most popular configurations, other configurations are possible, call the team on 01223 894833 to discuss you requirements or use our contact form.
SERVICE MODULE
1200 Wide Unit – ANY 3 x Face Plate Options
1500 Wide Unit – ANY 4 x Face Plate Options
1800 Wide Unit – ANY 5 x Face Plate Options
| Face Plate | Description |
|---|---|
| Blanking Plate | |
| 1 x 2G and 1 x 1G Face Plate | |
| 2 x 1G Face Plate | |
| 1 x 2G Face Plate | |
| 2 x 2G Faceplate |
Flexible FUTURE Configuration
With the iFLEXX service module you can change the configuration of your Service Module at any time after purchase by purchasing additional face plates for the configuration you require.

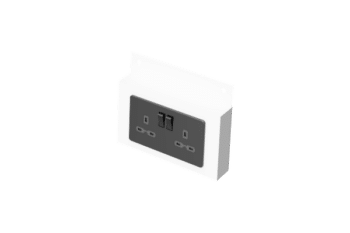

UNDERBENCH POWER
| CODE | CONFIGURATION |
|---|---|
| UP | 1 x DBL SOCKET |
How to build up your product code
Below are examples of how to build your product code by adding the components you require starting with a base bench
| PRODUCT CODE | PRODUCT SPECIFICATION |
|---|---|
| IF12750-TB-LC |
Base Bench 1200 x 750 x 930 Worktop: Trespa TopLab Base Foot Type: Levelling Castor |
| IF12750-SM1-TB-LC |
Base Bench 1200 x 750 x 930 Service Module: SM1 Worktop: Trespa TopLab Base Foot Type: Levelling Castor |
| IF15850-SM3-UP-T1-TBP-AF |
Base Bench 1500 x 850 x 930 Service Module: SM3 Underbench Power Module Shelf: 1 Tier Shelf Worktop: Trespa TopLab Plus Foot Type: Adjustable Foot |

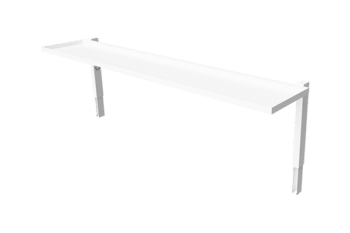

1 TIER SHELF
| CODE | DIMS W x D |
|---|---|
| T1 | 1200 x 300 x 2 |
| 1500 x 300 x 2 | |
| 1800 x 300 x 2 |

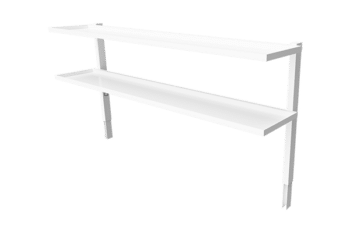

2 TIER SHELF
| CODE | DIMS W x D |
|---|---|
| T2 | 1200 x 300 x 2 |
| 1500 x 300 x 2 | |
| 1800 x 300 x 2 |

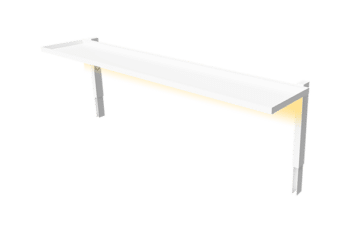

TASK LIGHTING
| CODE | LIGHTING |
|---|---|
| TL | LED TASK LIGHT MOUNTED UNDERSIDE 1ST TIER SHELF |
WORKTOP OPTIONS
| CODE | WORKSURFACE |
|---|---|
| TB | TRESPA TOPLAB BASE |
| TP | TRESPA TOPLAB PLUS |
| TBA | TRESPA TOPLAB PLUS ALIGN |
| ESD | ESD LAMINATE |
FOOT & CASTOR OPTIONS
| CODE | WORKSURFACE |
|---|---|
| AF | ADJUSTABLE FOOT |
| SC | STANDARD 100M BRAKED CASTOR |
| LC | HEAVY DUTY LEVELLING CASTOR |
IFlexx,IConnexx, ITile and IGantry are registered trademarks and or trademarks of InterFocus Ltd

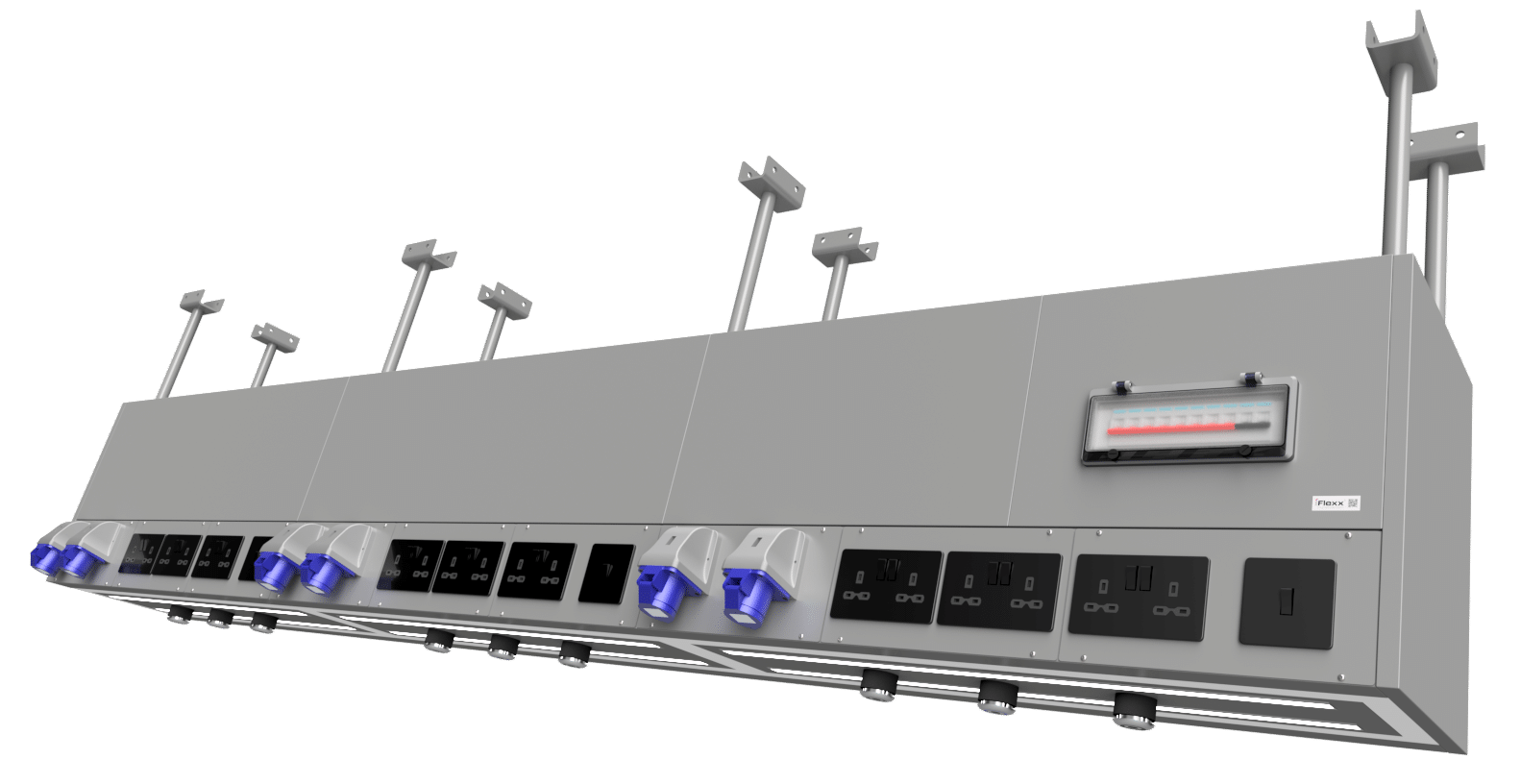

iflexx overhead service units
The iGANTRY and iTILE modular service units provide a versatile overhead service carrier for power, data, and gas services,
Get In Touch Today To Find Out how the Iflexx MODULAR LAB system can integrate into your new lab
And start your journey into a new flexible way of working in your laboratory
